Bonding machine
Product Description

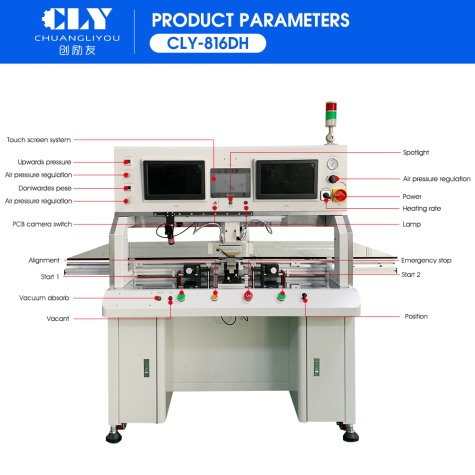

Features:
*Pulse Heating System
*2pcsCCD                                                                         *DELTA PLC Control system
*Human - Machine interface
*Imported electrical configuration
*Up to 100 inch TV LCD Repair
Specifications:


Model:	816DH
Product Name:	100 Inch TV LCD Repair Single station Pulse Heating COF/FOG Bonding machine
Suitable For:	Suitable for FPC/COF Contraposition bonded to LCD which attached ACF,Used for COF repair
Size Range:	7-100inch
Bonding Precision:	X±0.01MM ,Y±0.01MM
Machine Capacity:	22S/Pcs,2500pcs/day
Indenter Qty:	1PCS
Power Supply:	220V±10%,50HZ,1500W
Air Supply:	0.3~0.5MPa,dry air
Platform Precision:	±0.01MM
Pressure Head Size:	50*1.4MM (customizable)
Temp Range:	RT~400ºC
Time Range:	1~99.9sec
Product Size:	W1800*850*H1520MM
N.W:	About 450kg

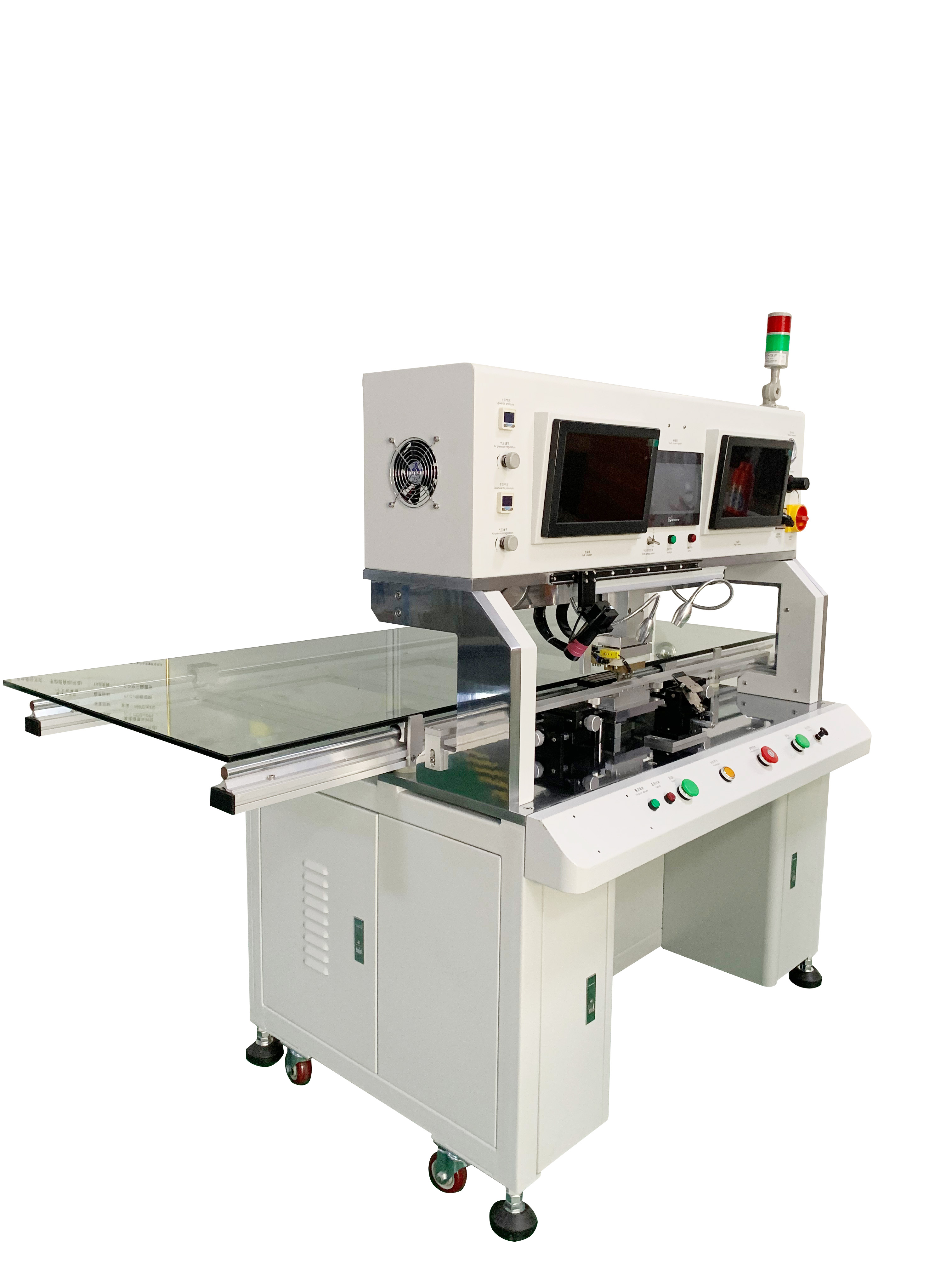

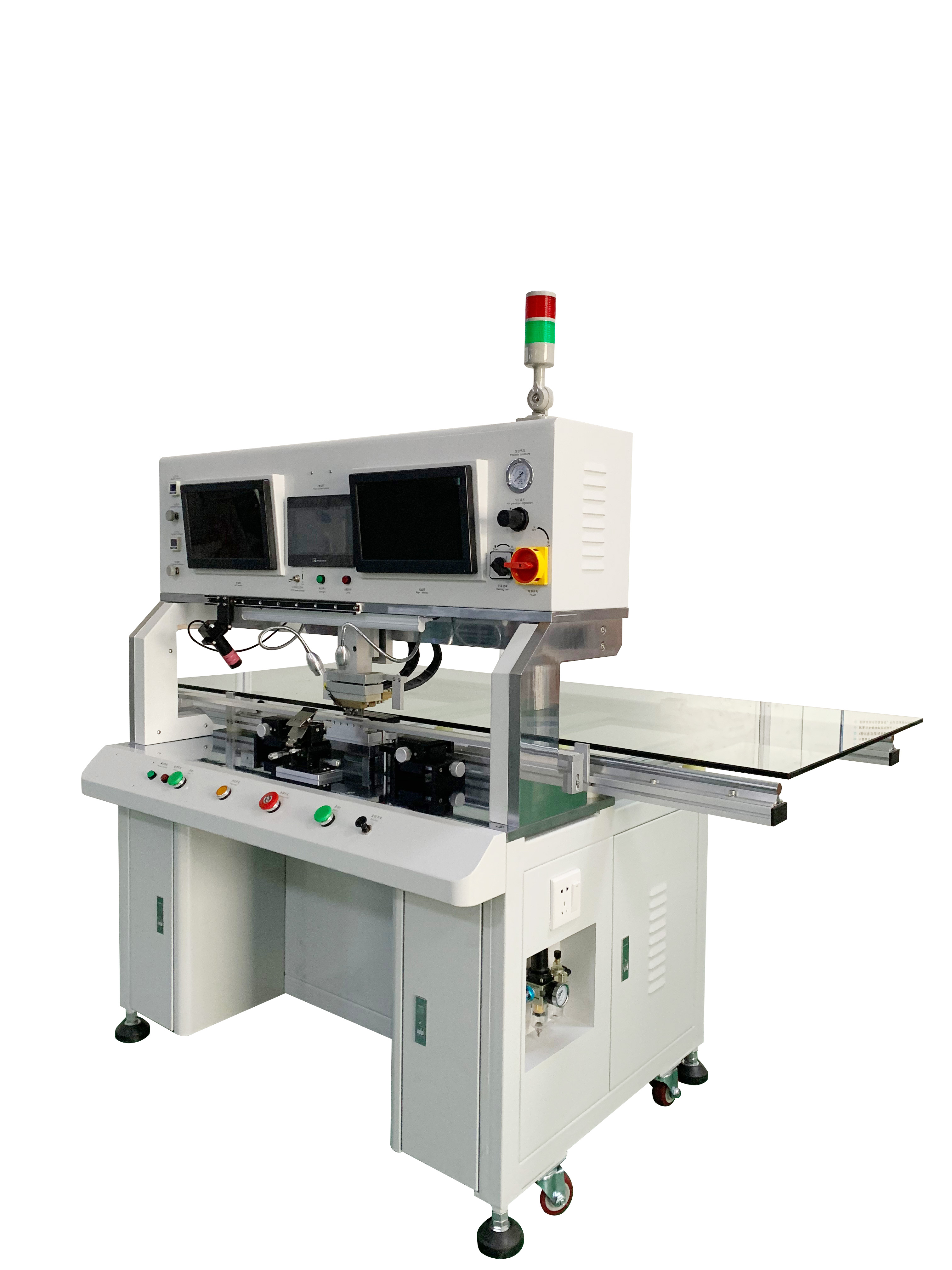

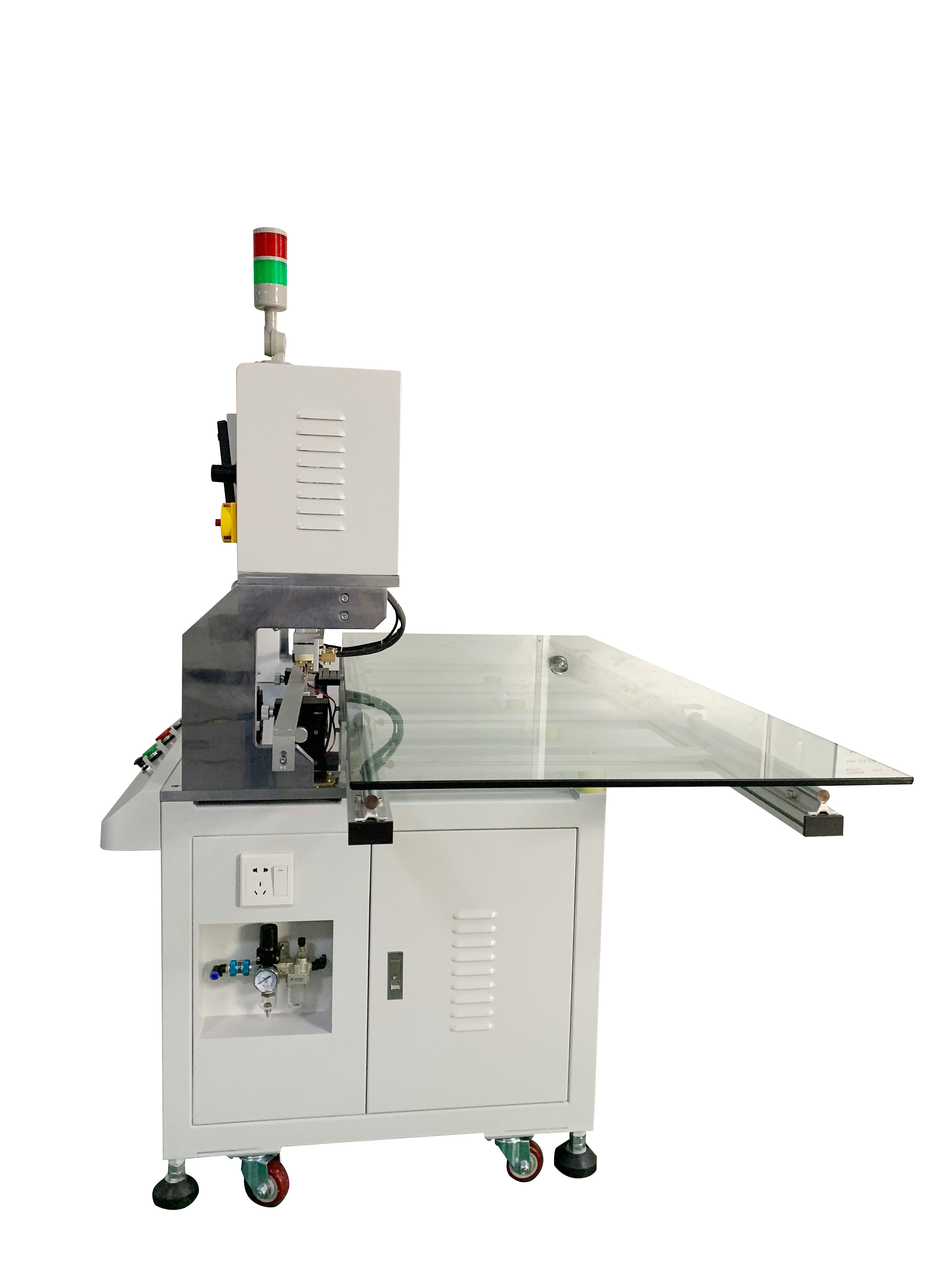

Pictures:


Glossary:

What is ACF?
1, The common explanation:
ACF is anisotropic conductive film, a kind of  material  in the bonding process to be used in capacitive screen, resistive screen, touch screen, LCD screen, tablet PC, mobile phone screens, etc.Means a resin film containing a heat-conductive particles of a thermoplastic or cured. Mainly for LCD panel signal transmission link with the driver IC, the need to bonding different interface to choose suitable conductive particles and density, generally used for fine pitch of the conductive particles having a diameter of about 3~5 um.
2, Professional explanation:
 The English abbreviation of ACF is Anisotropic Conductive Film, ACF is the electrical conduction in the Z-axis direction and the XY insulation resistance characteristic plane has obvious differences. When the difference between Z-axis and the XY plane on-resistance value of the insulation resistance exceeds a predetermined ratio, also can be called well anisotropic conductivity.

What is the COF
1, The popular explanation:
COF package is to put the IC dependend on FPC: COF package for flip chip film.
2, Professional explanation:
COF is the abbreviation of Chip - on - flex, is to put the IC dependend on FPC,a new technology developed of liquid crystal display module,  by it in terms of product size, weight, high integration, have very big breakthrough.Due to the flexible circuit board PCB thickness thin, lighter than the solid, so COF package module is small volume, light weight, and the design and production speed  is quickly.

What is the pulse hot-pressing machine?
1, The popular explanation:
Pulsed hot pressing machine is by hot pressing head loading pulse voltage, hot head heating , will be connected to the object, when the temperature rises to solder melting point after (i.e., after the rise to the predetermined temperature), will be connected to the tin melting between the objects and put it together.Applied to mobile phone manufacturer, touch screen manufacturers, such as computer, printer manufacturers, production technology applied in the following products: USB wire welding, soft wire FFC flexible PCB FPC or rigid circuit board PCB welding, TCP and circuit board PCB or PCB FPC welding between soft,welding?flexible circuit board FPC between circuit board PCB , etc.
2, Professional explanation:
Pulse hot press is the English translation of Pulse hot press, by hot pressing head loading Pulse voltage hot head heating , will be connected to this object to heat up, when the temperature rises to soldering tin melting point (i.e., to simulate the temperature after), will be connected to the tin melting between the objects and connect it together. The general Pulse hot-press temperature closed loop control.
What's the payment and delivery time?
Payment: Terms EXW/FOB/CIF, by T/T
Delivery time: About one week.
How about the warranty?
Usually we provide 1 year standard warranty and whole life technical support.
How about the training?
We provide two training method: factory training and video training.
More detail please see here: Training
How you packing the machine when shipping?
LCD TV Repair Bonding Machine Package
How can I install the machine after I received?
Here is a video of 816DH disassembly procedure. You can refer to it and do the opposite procedure.↓


They are almost all the accessories needed by ACF/COF/TAB repairing, means no need buy other extra accessories.

No.	Name	Model No.	Quantity	Unit	Specification	Remark
1	Single Head Bonding Machine	816DH	1	Set	Single Head
2	ACF Anisotropic Conductive Film	AC-7206U-18	1	Piece		Glass special
3	ACF Anisotropic Conductive Film	AC-2056R-35	1	Piece		PCB special
4	Acetone Liquid	BT-H1	1	Bottle	500ML
5	Absolute Alcohol	CH3CH2OH	2	Bottle	500ML
6	ACF Removing Liquid	G-450	1	Bottle	500ML
7	Hitachi Blue Glue		1	Bottle	100ML
8	Fuji Silicone		1	Piece	50M
9	Teflon		1	Piece	50M
10	Heating Solder Iron		1	Piece	30W
11	Alcohol Bottle		2	Bottle
12	TAB Cutter		1	Piece
13	Optical Microscope		1	Piece
14	LCD Test Board	HXV59	1	Piece
15	Air Compressor	OTS750	1	Piece		Mute Oil-free
16	Cleanroom Wipers		1	Piece
17	Cotton Swab		1	Piece
18	Handheld Magnifier		1	Piece
19	Precision Tweezers	Elbow, Straight	2	Piece		High Hardness Hyperfine
