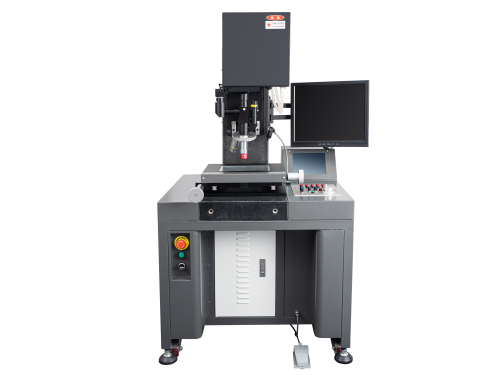

Table of Main Technical Parameters of Equipment
Item
Parameters
REMARK
LASER
SYSTEM
LASER TYPE:Xenon lamp LASER
MODEL:CLY-823LS
Wavelength: 1064nm IR/GR (wavelength optional)
Pulse width: 8ns
Frequency: 1-30Hz
Maximum energy output: 80mj
Output parameter stability: ± 3%
Spot size: square/adjustable in length
Minimum spot: 2.5um * 2.5um (optional under 50x objective state)
Spot size adjustment range: 50X MAX-24um * 24um
Min-2.5um * 2.5um (optional)
20X MAX-60um*60um
MAX-3um*3um
Imaging system
model:CLY-823LS
Imaging lens: IR/GR antireflective film

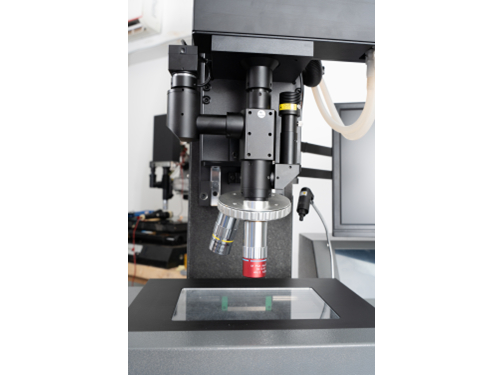

Objective lens: 10X (APO), 50X (NIR)
Objective switching: manual
CCD brand: Sony, Japan
CCD pixel: 2 million image capture
Display: 17 inch 1920 * 1080
software systems
Control function:
1. Laser energy, frequency, wavelength switching, spot size adjustment and storage
2. Workbench movement and processing status parameter display

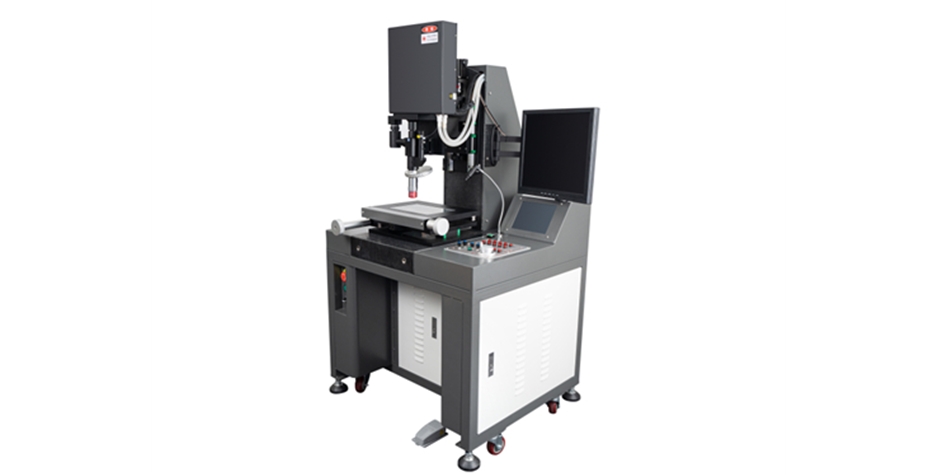

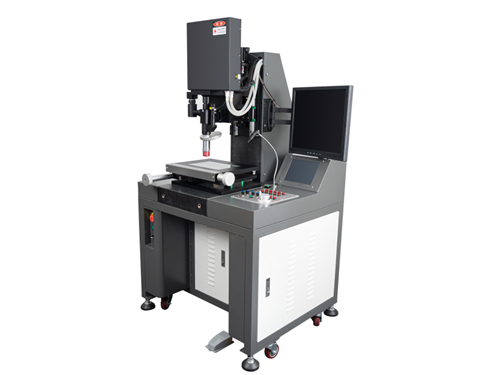

Rack structure
Material: Sheet metal steel frame
External dimensions: L1800mm * W1200mm * H1500mm

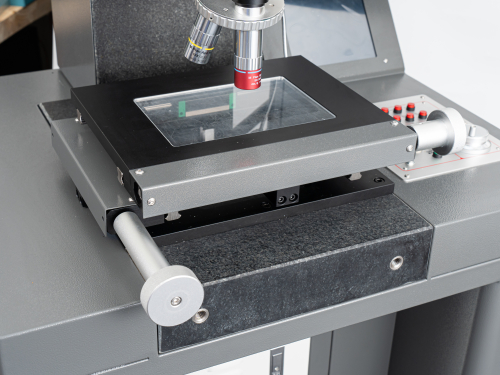

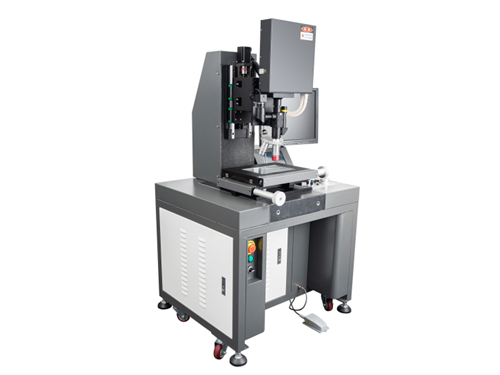

Workbench size: 1100mm * 1500mm
XY axis stroke: 1200mm * 720mm
Z-axis stroke: 100mm
XYZ axis movement speed: High speed ≥ 10mm/s Low speed: 2mm/s
Manual fine adjustment: 0.25mm/260 degrees
XYZ axis movement accuracy: ± 0.02mm
Platform surface: padded with high-strength glass
Z-axis guide rail: oil-free guide rail
Appearance paint coloring: gray with glossy oil (dust-free type)
Suspension beam structure: marble structure
Display holder: adjustable for front and rear swing
Electrical part

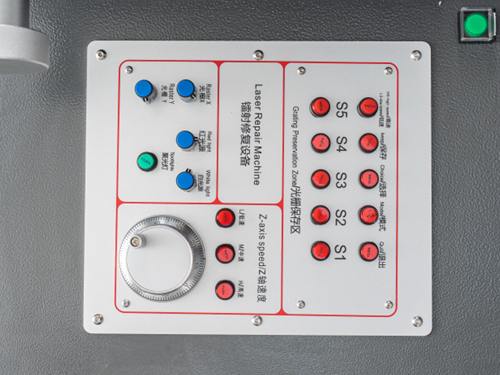

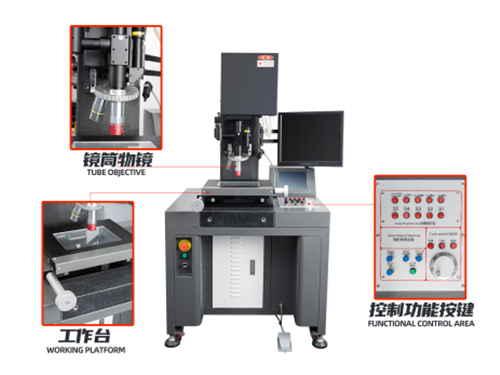

Operating keyboard functions:
1. Shift between fast and slow 3 gears
2. XYZ axis coarse adjustment and fine adjustment
3. Illumination light source brightness adjustment
4. Start power switch
5. Start button
6. Laser energy compensation knob

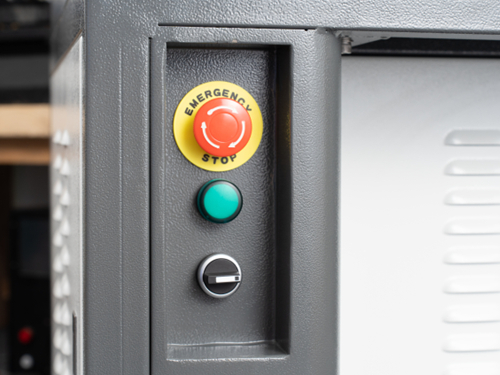

7. Emergency stop
Input power supply: single-phase AC 220V 50-60Hz 10A
Application Principles
Use high-energy pulse laser to cut or fuse specific circuits in the ito conductive coating of OLED/LED/LCD, repairing the normal function of OLED/LED/LCD circuits.
Application
1. Fusion welding at the break of the circuit outside the box of the COP structure flexible screen.
2. External corrosion ITO circuit cutting and fusion of OLED screens (including COG and COF).
3. ITO circuit disconnection and fusion of TFT screen
4. ITO: Indium TinOxide, OLED/LED/LCD conductive circuit
5.COP: Chip On PI; Sheet on PI material. PI material is a flexible substrate. For example, 12Pro max, 13,13Pro, Samsung flexible screen, etc
COF: Chip On Flex; The chip is on the ribbon. For example, iPhone, max, 11pro max, 12,12Pro, and Samsung S6, S7, A51, A70, etc
