TAB COF Cleaning Machine Specification |
|
Device Description |

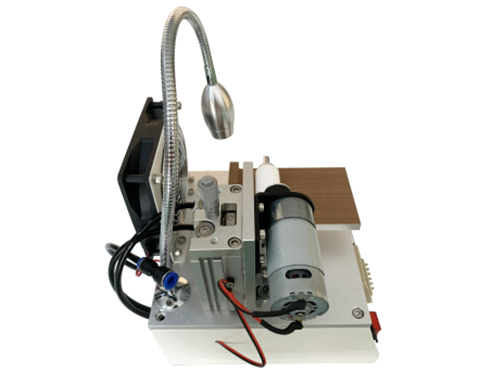

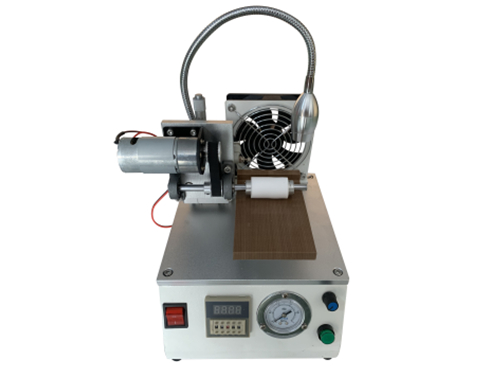

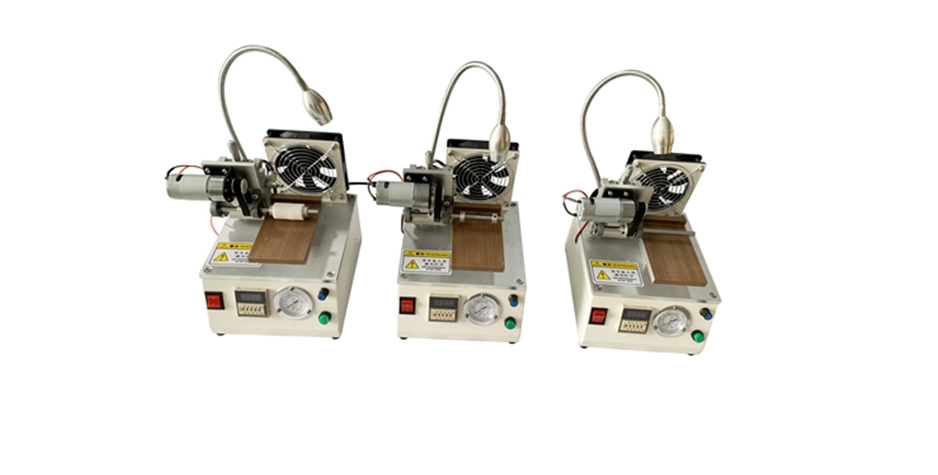

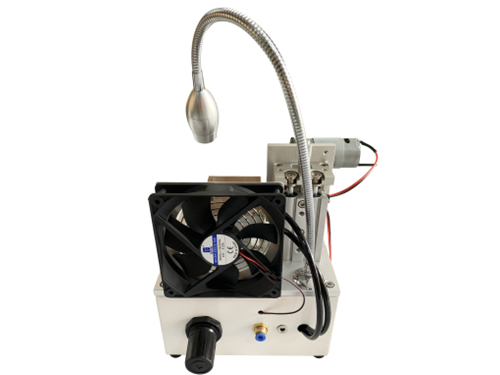

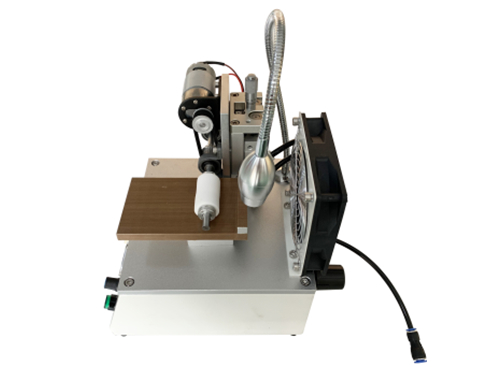

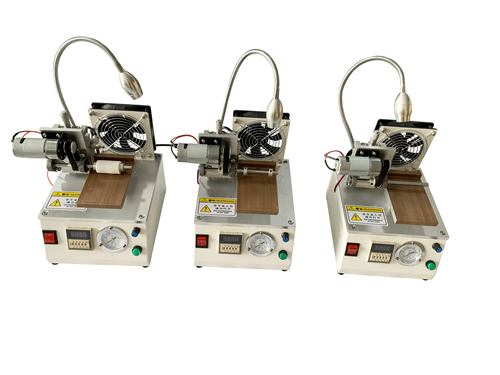

TAB COF cleaning machine CLY-230 |
Equipment Usage |
Cleaning FPC、COF、TAB |
Applicable TAB COF specifications |
15-70MM |
Number of clean TAB COFs |
1 piece/time |
Cleaning direction |
Direction |
cleaning time |
0-60S |
Tact Time |
TAB,COF 50 pcs/H |
Supply air pressure |
0.2Mpa |
power supply |
AC110V-220V,50HZ,30W |
Pneumatic device |
SMC cylinder and Yadeke Barometer combination |
Industrial control unit |
Time relay controlled PWM stepless speed regulation |
Position detection |
not have |
Control method |
Button+time operation |
Parameter settings |
Free cleaning time and pressure adjustment as needed |
motor speed |
0-1450 rpm |
Maximum torque of the motor |
3.4kg.cm |
peak power |
30W |
Size |
250*250*250mm(L*W*H) |
Weight |
6.5KG |
Packaging size |
330*270*330mm(L*W*H) |
Packaging weight |
8.5kg |
